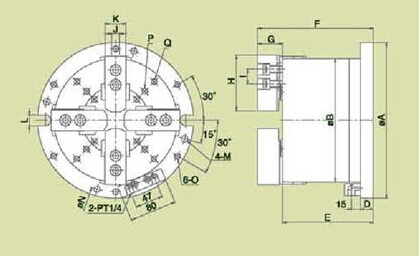

兩軸自動求心氣壓夾盤-2ACTUATING AXES SELF-CENTERING SOLID AIR CHUCK FIXTURES

兩軸自動求心氣壓夾盤專供中心機及各式工作台面的加工而設計，在X,Y兩軸間同時夾持任何異形工件具快速自定工件中心之功能。具3大特色:
2 actuating axes self-centering solid air chuck fixtures is great for machining center. TWO pairs of jaws clamp one after another to assure a workpiece to be locked completely.

1. 氣缸防銹處理:
   Rust-proof for Pneumatic Cylinder:
   在潮溼及工作環境較差的情況，氣内部經防銹處理，不會生锈或卡死。
   Inside wall of cylinder being rustproof treated; cylinder can work under wet or high moisture
   circumstances without rusty or seized trouble.
2. 防塵裝置:
   Dusts-proof and Waterproof:
   在工作台上的鉆銑工作、切屑及冷卻液不易進入夾盤內部，確保夾盤的使用壽命及精度。
   Dust-proof and Waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy andlead to longer service life.
3. 多邊夾持、自定中心:
   4-jaw Clamping and Self-centering:
   有別於虎鉗的單一軸向夾持，兩軸自動求心氣壓夾盤分別在X,Y兩軸向分割成兩組夾持動作,且同時自定工件中心，能快速準確的固定工件，在任一軸向銑削均能達到穩固的效果。4-jaw clamping are steadier for machining. Two pairs of jaws are moved independently to assure complete lock and self-centering.
