標準及輕型系列 STANDARD AND LIGHTWEIGHT SERIES

標準和輕型系列 本系列共有四種型號满足各類輸製造需求，WTi適用於製造汽車和小型卡車的輪圈，外徑範圍149到209mm，卡車和公車輪圈最大範圍可到24.59时。請聯絡本公司取得最理想的夾持方案!
輕型化的US系列夾頭可延長主軸壽命,同時加速加工週期時間。 選配的需件偵測系統由三個空氣活化活塞組成,其作用為感應工件是否安裝 正確,作為自動化機器手臂加工應用的基本元件。

This chuck, available in four models, does it all. The WTi fits automobile and light truck wheels 149 to 209, truck and bus wheels up to 24.59. Contact LMC Workholding for the optimum clamping solution. US Series chucks are lightweight for increased spindle life and faster cycle times.

Optional part detection system, consisting of three air-activated plungers, senses whether or not the workpiece is properly seated, an essential component for any automatic/robot loaded application.

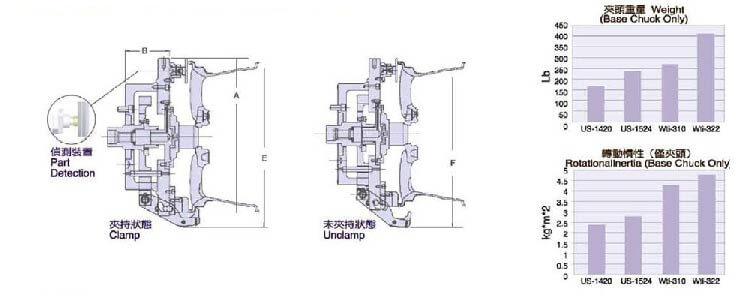

新一代凸輪手臂設計
Next-generation cam arm design
